Spring Plungers with Ball, Headed
 |
 |
| Material | ||
| Body: Free Cutting Steel, blackend Stainless Steel 1.4305 |
Ball: Ball-bearing steel, hardened Stainless Steel Hardened |
Spring: Stainless Steel |
| Note: To be used for locating or for applying pressure or lifting off. Temperature range up to 250C |
||
Finish – Free cutting steel, normal spring load

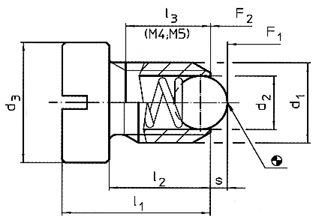

| Part No. | d1 | d2 | d3 | l1 | l2 | l3 | s | Spring Load F1 N= | Spring Load F2 N= | g |
| 2205.930 | M 4 | 2,5 | 6 | 9,5 | 6,5 | 5,0 | 0,8 | 8 | 14 | 1,0 |
| 2205.931 | M 5 | 3,0 | 8 | 12,5 | 8,5 | 6,7 | 0,9 | 8 | 14 | 2,0 |
| 2205.932 | M 6 | 3,5 | 10 | 14,0 | 9,0 | – | 1,0 | 11 | 18 | 3,7 |
| 2205.933 | M 8 | 4,5 | 13 | 16,5 | 11,0 | – | 1,5 | 18 | 31 | 7,0 |
| 2205.934 | M 10 | 6,0 | 16 | 20,0 | 14,0 | – | 2,0 | 24 | 45 | 13,2 |
| 2205.935 | M 12 | 8,0 | 18 | 22,0 | 15,0 | – | 2,5 | 26 | 49 | 19,5 |
Finish – Stainless steel, normal spring load
| Part No. | d1 | d2 | d3 | l1 | l2 | l3 | s | Spring Load F1 N= | Spring Load F2 N= | g |
| 2205.940 | M 4 | 2,5 | 6 | 9,5 | 6,5 | 5,0 | 0,8 | 8 | 14 | 1,0 |
| 2205.941 | M 5 | 3,0 | 8 | 12,5 | 8,5 | 6,7 | 0,9 | 8 | 14 | 2,0 |
| 2205.942 | M 6 | 3,5 | 10 | 14,0 | 9,0 | – | 1,0 | 11 | 18 | 3,7 |
| 2205.943 | M 8 | 4,5 | 13 | 16,5 | 11,0 | – | 1,5 | 18 | 31 | 7,0 |
| 2205.944 | M 10 | 6,0 | 16 | 20,0 | 14,0 | – | 2,0 | 24 | 45 | 13,2 |
| 2205.945 | M 12 | 8,0 | 18 | 22,0 | 15,0 | – | 2,5 | 26 | 49 | 19,5 |
